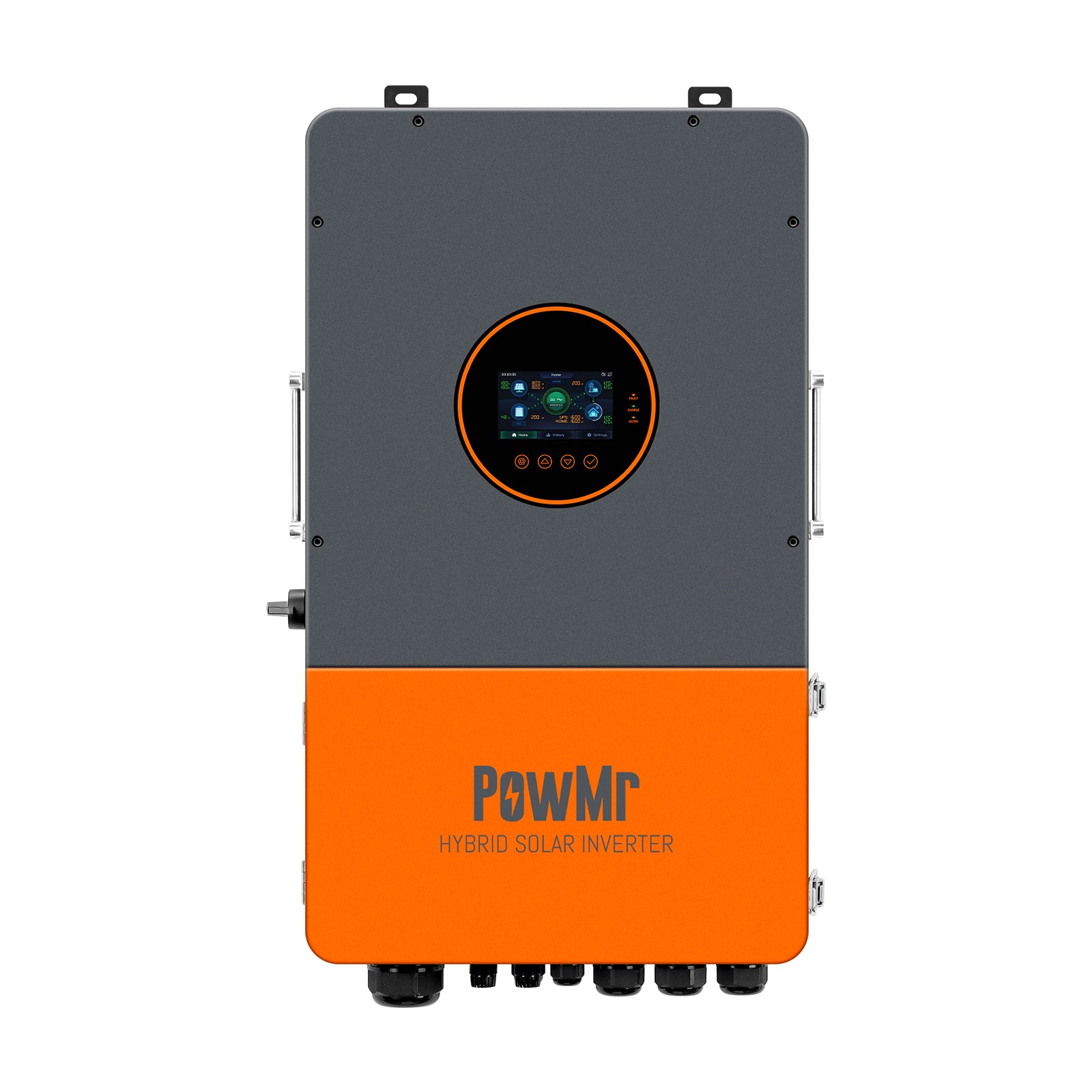

12KW 48Vdc Hybrid Inverter 110V/240V/208Vac Split Phase Supports 6 Units in Parallel

Note:Grid-feed rules vary by region. Contact us before purchase if grid export is needed.

Delivers 12kW split-phase 120/240V AC output capable of supporting demanding household and commercial loads. Provides stable power delivery for high-consumption appliances and continuous operation scenarios.

Two independent MPPT trackers manage PV arrays (125–450 Vdc, 2×3300 W), preventing current overload, enabling effective solar array management, and improving energy harvest. Built-in AFCI continuously monitors for arc faults and automatically disconnects circuits to ensure safety.

Enables parallel operation of up to six units, scaling system capacity to 72kW. Offers 120/240V split-phase or 120/208V three-phase output, with synchronized communication for coordinated power management.

Compatible with mainstream 48V battery systems for broad integration flexibility.
Delivers up to 200A charging for rapid energy replenishment. RS485/CAN communication ensures smooth connection to diverse BMS protocols and battery types.

Prioritizes solar energy for household loads to reduce grid dependence. Enables feed-in of surplus solar energy where permitted, unlocking additional economic benefits. CT sensors provide real-time L1 and L2 grid current monitoring for accurate export and load management.

Three-mode generator port supports generator input, microinverter AC-coupling, or smart load output. Offers automated backup when grid outages occur, AC-coupled with existing microinverters, and secondary AC output for dedicated loads.

Supports programmable charge and discharge periods to align with TOU pricing. Enables off-peak charging and peak-time discharging for optimized electricity cost management. Automatically switches between self-consumption and surplus grid export based.

High-definition touchscreen presents real-time data, history records, and quick parameter access. Remote monitoring and control via mobile APP offer convenient system visibility. Clear interface layout and intuitive workflow simplify installation and daily operation.

The system features a built-in circuit breaker and IP65 protection, delivering simplified wiring, outdoor reliability, and comprehensive safeguards including PV, utility, AC, battery, overload, short-circuit, and bypass protections for stable, safe performance in all operating conditions.

Three-fan zoned cooling design with dual airflow channels rapidly removes heat. Large aluminum heat sink improves thermal transfer and prevents hotspot buildup. Adaptive temperature-control algorithm maintains stable output without derating under heavy loads.
